Three-Way Sync Workflow (Web)

See how the unified Sync Status tab handles all three drift comparisons — Collection vs Project, Source vs Collection, and Source vs Project — without switching tools. One artifact, three scopes, one merge dialog.

About This Demo

Duration: ~3 minutes Audience: Engineers managing artifact drift across sources, collections, and projects What you'll see: Diverged artifact in browser, artifact modal, ComparisonSelector with three scopes, diff hunks with always-labeled sides, merge dialog and preview, sync resolution

What You'll See

Diverged Artifact in the Browser

A divergence indicator surfaces drift directly in the artifacts list.

Artifacts browser with diverged artifact

What's happening:

  • The artifact row carries a divergence indicator — drift is visible without opening the artifact
  • This artifact is diverged in two ways: upstream from the source AND from the project's local copy
  • One artifact, two kinds of drift, one row

Open the Artifact Modal

Click the row — the consolidated detail modal opens.

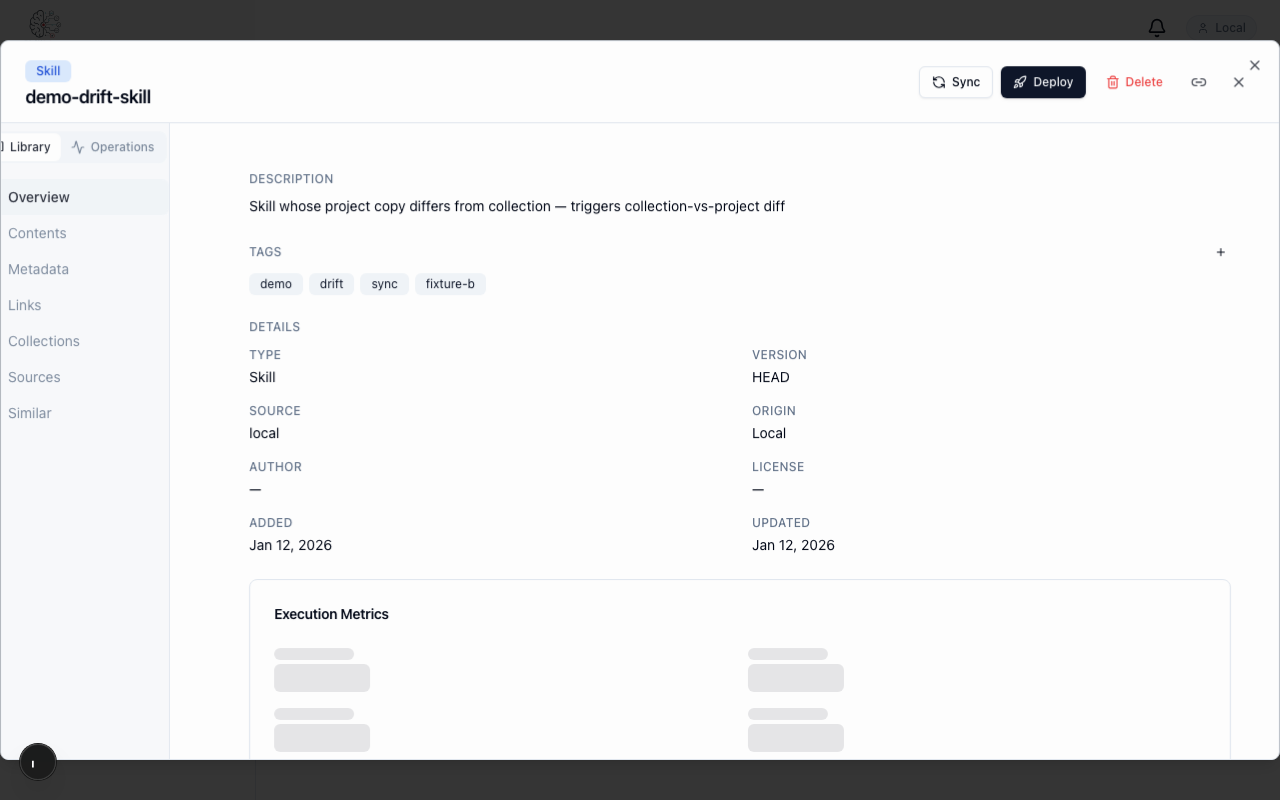

Artifact modal opened

What's happening:

  • The modal exposes the full artifact surface in tabs: overview, version history, deployments, sync status
  • Sync Status is where drift gets inspected and resolved

Sync Status Tab Active

Switch to Sync Status — the ComparisonSelector appears immediately.

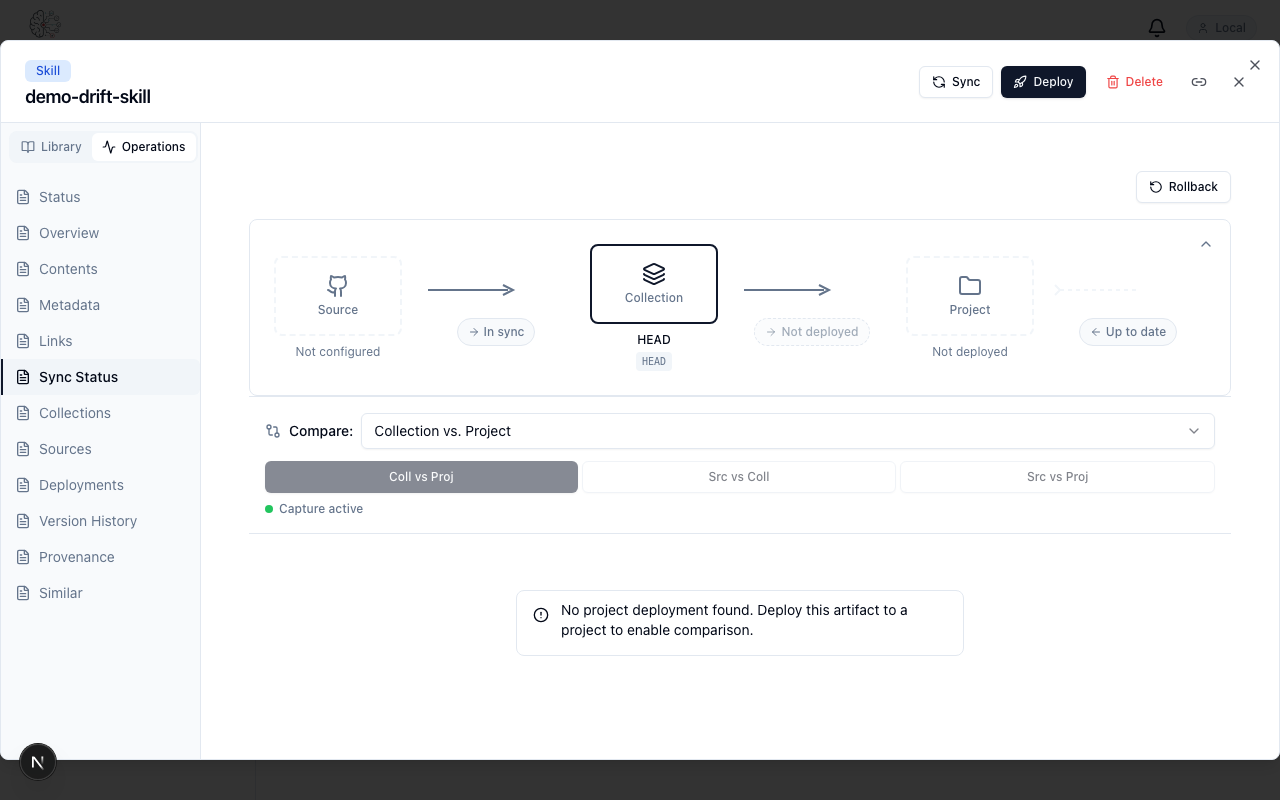

Sync Status tab active

What's happening:

  • Three comparison scopes are presented as a single selector: Collection vs Project, Source vs Collection, Source vs Project
  • One tab unifies all three sync scopes — no separate views, no separate tools

Scope: Collection vs Project

The default scope shows local project mutations against the collection's copy.

Scope: Collection vs Project

What's happening:

  • Left side is labeled Collection, right side is labeled Project — labels are always explicit
  • The DiffViewer renders the unified diff with added, removed, and context lines
  • This shows what the project has changed since deployment

Scope: Source vs Collection

Switch scope — the DiffViewer reloads against the upstream source.

Scope: Source vs Collection

What's happening:

  • Left is now Source (e.g. the GitHub repo), right is Collection
  • This shows what changed upstream that the collection hasn't pulled yet
  • Same UI, same artifact — only the comparison axis changed

Scope: Source vs Project

The third scope compares directly across the full chain.

Scope: Source vs Project

What's happening:

  • Left is Source, right is Project — the broadest comparison
  • Useful when you want to understand the total drift, not just one hop
  • Combines upstream changes with local project mutations in a single diff

Diff Hunk Detail

Each hunk is rendered with line-level granularity.

Diff hunk detail

What's happening:

  • Hunks are parsed lazily — large diffs scroll smoothly because not every hunk is rendered upfront
  • Added lines, removed lines, and context lines are visually distinct
  • Stale time is tuned for interactive freshness (30s) — diffs don't sit on stale data

Open Merge Dialog

Initiating a merge opens the dialog with both sides.

Merge dialog open

What's happening:

  • The merge dialog presents the two versions and the resolution surface
  • Pick "ours", "theirs", or compose a merged version per hunk
  • This is the resolution step — diffs alone don't change anything; the merge does

Merge Preview

Before committing, the dialog shows a preview of the resolved content.

Merge preview

What's happening:

  • The preview shows what the artifact will look like after merge
  • No write happens until you confirm — preview is read-only
  • This is the last checkpoint before drift gets resolved

Resolved State

After merge, the artifact returns to a synced state in the browser.

Artifacts in sync

What's happening:

  • The divergence indicator is gone — the artifact is now synced across all three scopes
  • The browser reflects the new state without a full page reload
  • Cache invalidation runs automatically: queries for this artifact's diffs are refreshed

The Three Scopes Cheat Sheet

Scope Left side Right side Use when
Collection vs Project Collection Project Inspecting local project mutations
Source vs Collection Source (repo) Collection Checking what's new upstream
Source vs Project Source (repo) Project Understanding total drift end-to-end

The label pair is always explicit — you never have to guess which side is which.

Key Takeaways

  • One tab, three scopes: All comparisons in the same UI, no tool-switching
  • Always-labeled sides: Left and right labels are never ambiguous
  • Lazy hunk rendering: Large diffs perform well — only visible hunks are parsed
  • Interactive stale times: Diff queries refresh on a 30s window — no stale state
  • Preview before merge: The merge dialog shows the resolved content before any write
  • Auto cache invalidation: After merge, related queries are invalidated automatically
